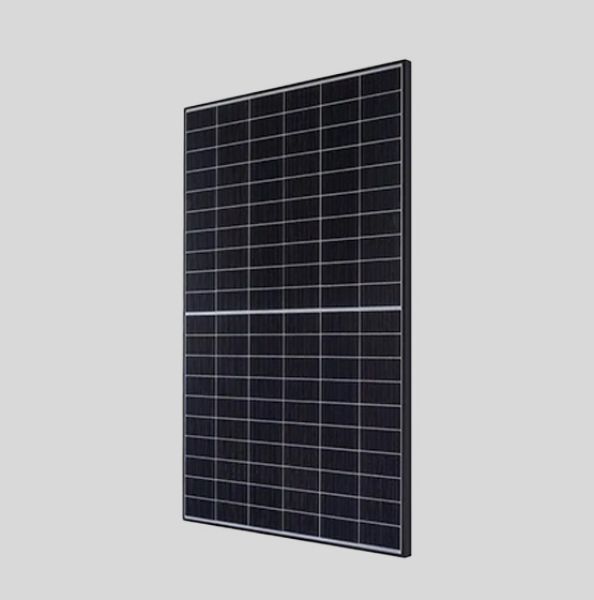

PANASONİC 540 W PV PANEL

12 yıl ürün garantisi, 25 yıl %84.8 verim garantisi.

Ölçüler : 2279×1134×35 mm

Ağırlık : 29.1 kg

ELECTRICAL DATA (STC)

Maximum Power Voltage-VMPP (V)  41.75 V

Maximum Power Current-IMPP   (A)  12.94 A

Open Circuit Voltage-VOC          (V)   49.54 V

Circuit Current-ISC                       (A)  13.89 A

Efficiency ° m (%)                              % 20.9

MECHANICAL DATA

Monocrystalline Silicon 182 mm

144 cells (6×24)

2278×1134×35mm (±1%)

29.1 kg

3,2mm, High Transmission, AR Coated Heat Strengthened

35mm Anodized Aluminum Alloy

IP 68 rated and 30cm or (optional 130cm cable)

Photovoltaic Technology Cable

MC4 EVO2, Cable 01S

TEMPERATURE RATINGS

Temperature Coefficient of PMAX  -0.36 °C%

Temperature Coefficient of VOC    -0.304 °C%

Temperature Coefficient of ISC      +0.050%/°C
